Specifications

SC90.1000 Chassis Connectivity

HDMI Input: Up to 16 x HDMI Type A

Ethernet: Up to 16 x RJ45 Sockets

Power: 1 x IEC Power Inlet

Receiver Connectivity

HDMI Output: 1 x HDMI Type A, 19-Pin Female

Ethernet: 1 x RJ45 Socket

Power: 1 x DC Jack Socket

Video

HDMI Signal: HDMI

Supported Input Resolution: Full HD 1080p/60Hz

Stream Resolution: Full HD 1080p/60Hz

Data Rate: 0.1 Mbps ~ 32 Mbps per channel

Rate Control: CBR / VBR

Advanced Pre-Treatment: De-Interlacing Reduction & Sharpening

Audio

Encoding: AAC

Sampling rate: 48K/64K/96K/128K/160K/192K

Sampling precision: 24 bit

Data rate: 64Kb/s ~ 384Kb/s

System

Ethernet: 100Base-T Ethernet Interface

Protocol: RTMP, RTSP, UDP, HTTP, HLS, FLV ONVIF

User interface: Web default IP address: 192.168.1.168

Power (Chassis)

Type: IEC

Input: 100~240V AC 50/60Hz

Consumption: 90 Watt (max)

Power (receiver)

Type: AC-DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 12V/1A

16 Channel Encoder Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 440 x (D) 300 x (H) 133

Weight: 6.5Kg

Colour: Silver

Receiver Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 165 x (D) 88 x (H) 24

Weight: 2.5Kg

Colour: Black

Safety and Emissions: CE, FCC, RoHS

16 Channel Encoder Contents

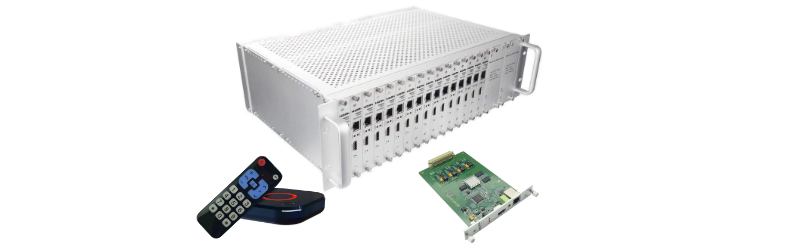

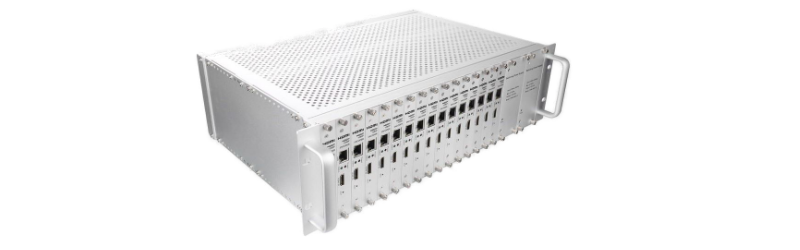

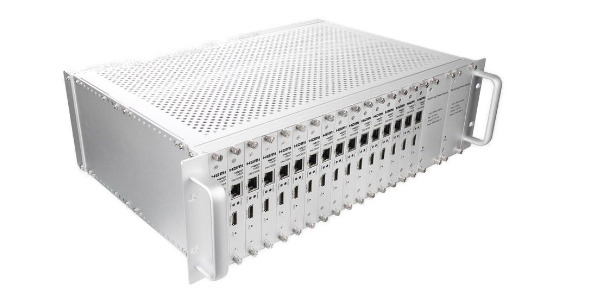

1 x 19” x 3RU Chassis (SC90.1000)

1 x IEC Mains Cable

2 x Power Supply Modules

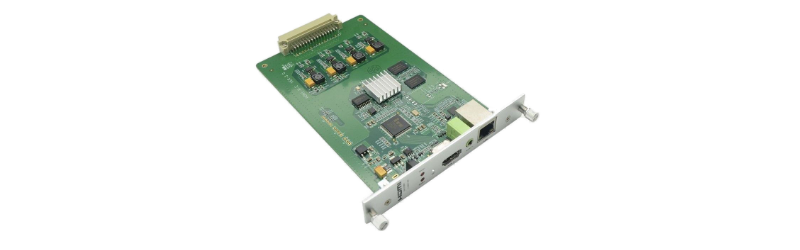

16 x Encoder cards (SC90.1001) sold separately

1 x CD and Manual

Receiver Contents

1 x Main Unit (SC90.1015)

1 x IR Remote Control

1 x 12V/1A Mains Adaptor (No PoE)

Description

The SC90.1000 system supports 16 x HDMI inputs with resolutions up to 1080p and encodes each signal using H.264 with high performance video compression. Individual encoders are easily configured using a user friendly web browser GUI (Graphic User Interface) with no specialist programming required.

Set Top Boxes (STB) provide Full HD 1080p video with a single HDMI connection and provide a user friendly, easy to use infra-red remote control. The remote can be programmed to operate the TV’s basic functions, removing the need for two remotes for general TV viewing and an editable program channel list makes it easy to select channels.

Multiple chassis can be used to create larger systems.

This system is ideal for commercial installations and provides the basic requirements for any hospitality environment.

Code: SC90.1000

16 Channel HDMI Encoder, 1080p

Features

> 16 Channel HDMI to IP system (stackable)

> H.264 Encoding with Embedded Hi-Linux System

> Hot swappable cards for un interrupted servicing

> Dual / Backup power supplies

> Supports resolutions up to 1080p/60Hz

> Web Browser user interface for easy setup

> Create / Edit channel lists for easy selection
