Specifications

Input Connectivity

Signal: 8 x HDMI Type A, 19-Pin Female

RS232: 1 x 3-Pin Phoenix Terminal

Ethernet: 1 x RJ45 Socket

Power: 1 x DC Jack Socket

Output Connectivity

HDBaseT: 8 x RJ45 Socket

Mirrored HDMI: 8 x HDMI Type-A, 19-Pin Female

IR Emitters: 9 x 3.5mm Jack Sockets

Signal

Signal Input: HDMI

Bandwidth: 18Gbps

Standards: HDMI 2.0, HDCP 2.2

Video Resolution: 4K/60Hz

Colour Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0, HDR10, HDR10+, DLD, Dolby Vision

Dolour Depth: 8/10/12bit

Distance: 70m @ 4K over CAT6

HDMI Audio: LPCM 7.1, Dolby Digital HD, Dolby True HD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA and DTS-X

IP Control: Ethernet 10/100

RS232: Full Duplex

IR: Wide Bandwidth, Frequency 30KHz to 56KHz (940nm)

Power (main unit)

Type: AC to DC Power Supply

Input: 100~240V AC 50/60Hz

Output: 12V/5A

Consumption: 50 Watts

Receiver Power: PoC (power over cable) from Matrix

Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 440 (D) 250 x (H) 44

Receiver Dimension: (W) 61 (D) 88 (H) 18

Weight: Matrix 3.2Kg Receiver 155g

Colour: Black

Safety and Emissions: CE, FCC, RoHS

Contents

1 x Main Unit (SC40.EMX88)

8 x Receivers

9 x IR remote control

8 x IR blaster cable (1.5m)

9 x IR receiver cable (1.5m)

1 x 3 pin Phoenix terminals

1 x PSU 12V/5A

1 x Rack mount set (matrix)

8 x Mounting bracket set (receiver)

1 x CD

1 x Manual

Description

The new 18Gbps HDMI matrix is packed with many features and delivers stunning Ultra HD video up to 70m over a single CAT6 cable. Each HDMI source can be routed to any display simultaneously. The CAT6 output has a mirrored HDMI output which can be used for recording or simply connecting an additional display for rooms where the source can be shared such as a bedroom with on-suite.

The receivers are (PoC) powered over the CAT6 cable so there’s no need for additional power adaptors behind the screens. The receivers can be connected up to 70m from the matrix and still provide zero latency, 4K/60Hz images without requiring any adjustments.

Each zone simply selects the required input using the IR remote control provided and then uses the third party IR remote to control the source device. These IR signals are routed with the HDMI signal eliminating any possibility of controlling two devices at the same time. The matrix also has local control using either IR, the front panel buttons, RS232, CEC or logging in via a web browser making it easy to link up with third party smart home controllers such as RTI, Crestron, Control4 and more.

Our SC40.EMX88 matrix supports the latest industry standards including HDMI 2.0b, HDCP 2.2, HDR10+, 4K/60Hz, YUV 4:4:4 and comes with a 2 years manufactures warranty. The package includes 8 x receivers and all the IR transmit and receiver cables needed to complete your installation.

Code: SC40.EMX88

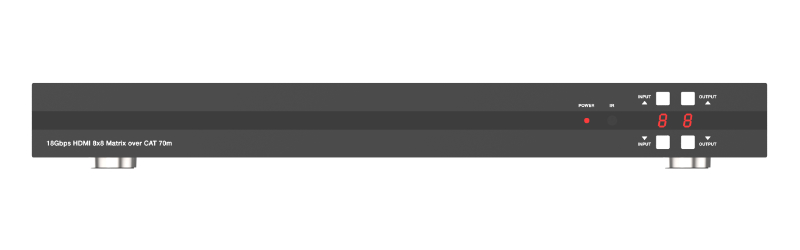

8x8 HDMI Matrix over CAT6, 70m, 4K/60Hz

Features

> 8x8 Matrix switch over CAT6/6a/7

> 8 x RJ45 outputs and 8 x mirrored HDMI outputs

> 18G, 4K@60Hz, YUV 4:4:4, HDR10+

> HDMI 2.0b and HDCP 2.2 compliant

> Transmission distance 70m

> Infrared routing for source and input control

> Control: Local and remote end IR, RS232, LAN/IP

> PoC receivers are powered by matrix over CAT6
