Specifications

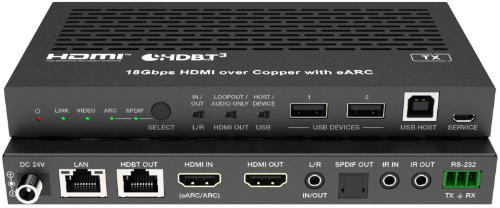

Transmitter Connectivity

HDMI Input: 1 x HDMI Type A, 19-Pin Female

HDMI Loop: 1 x HDMI Type A, 19-Pin Female

Signal Output (HDBaseT): 1 x RJ45 Socket

Digital Audio: SPDIF Optical

Analogue Audio: 1 x 3.5mm Stereo Jack Socket

RS232: 1 x 3 Pin Phoenix Terminal

USB: 2 x USB (Type-A)

USB: 1 x USB (Type-B)

IR Output: 1 x 3.5mm Jack Socket

IR Input: 1 x 3.5mm Jack Socket

LAN: 1 x RJ45 Data Socket

Service: 1 x Mini USB (firmware update only)

Power: 1 x DC Jack

Receiver Connectivity

Signal Input (HDBaseT): 1 x RJ45 Socket

HDMI Output: 1 x HDMI Type A, 19-Pin Female

Analogue Audio: 1 x 3.5mm Stereo Jack Socket

USB: 2 x USB-A, 4-Pin Female

USB: 1 x USB (Type-B)

RS232: 1 x 3 Pin Phoenix Terminal

IR Output: 1 x 3.5mm Jack Socket

IR Input: 1 x 3.5mm Jack Socket

LAN: 1 x RJ45 Data Socket

Service: 1 x Mini USB (firmware update only)

Power: 1 x DC Jack

Signals

HDMI Input: HDMI 2.0b

HDCP Compliance: HDCP 2.2 / HDCP 1x

Video Resolutions: Up to 4K 50/60Hz 4:4:4

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit, 10-bit, 12-bit

HDMI Audio Formats: PCM 2.0 / 5.1 / 7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS HD Master Audio, DSD

HDR Formats: HDR10, HDR10+, Dolby Vision, HLG

Distance: 100m over a single CAT6A/7

Analogue Audio: PCM 2.0

Infra-Red: IR Frequency: 30KHz 50 56KHz (940nm)

RS232: Full Duplex

USB: USB 2.0, Transmission rate up to 480mb/s

LAN: 1G

Power

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: Transmitter only 24V/1A

Consumption: 15.36 watt

Environment

Operating Temperature: -0° to 40°C

Storage Temperature: -20° to 60°C

Operating Humidity: 20 to 90% RH (no condensation)

Transmitter Dimensions: (W) 170 x (D) 102 x (H) 22

Receiver Dimension: (W) 170 x (D) 102 x (H) 22

Weight: Transmitter 425g and receiver 437g

Colour: Black

Safety and Emissions: CE, FCC, RoHS

Package Contents

1 x Transmitter

1 x Receiver

1 x IR Sender cable (1.5m)

1 x IR Receiver cable (1.5m)

2 x 3 Pin phoenix terminal

1 x Power supply 12V/1A

4 x Mounting Ears

1 x Manual

Description

This HDBaseT 3.0 Extender extends uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1G Ethernet and USB 2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from the receivers HDMI output pass through to the transmitters HDMI input or de-embedding to the transmitters HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional PoC.

The Extender offers the most convenient solution for HDMI extension via a single CAT6A/7 cable with long distance capability, and is the perfect solution for home/commercial applications.
