Description

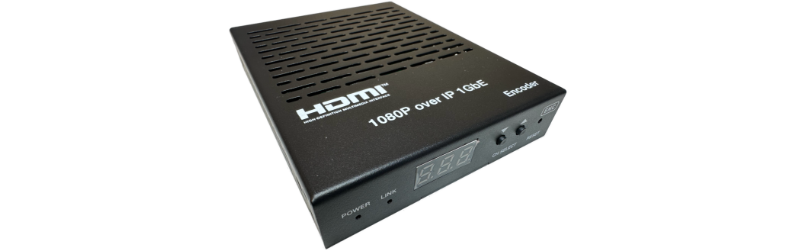

The SC08.MX5300C is a video over IP solution for high definition signal extension over copper cables. This solution leverages 1G Ethernet switches and enables signal management of 1080p/60Hz (4:4:4) signals with virtually zero frame latency. Bi-Directional RS232, extracted and embedded audio are also supported.


The video wall mode allows a single video source to be stretched across multiple displays, each receiver crops and scales the region of interest according to its position in the wall matrix. The receivers are locked to the source and thus to each other with no frame rate conversion.


The SC08.MX5300C is managed and controlled using RS232 and IP control codes over the network using an integrated web browser or from virtually any third party controller, including those from AMX, Crestron, Control4.

Code: SC08.MX5300C
AV over IP Matrix, 1080P/60Hz, Video Wall

Features

> Create virtually any size matrix

> Unicast, Multicast, Matrix and Video Wall

> Full HD 1080p and HDCP 1.4 compatible

> Latency: Less than 100ms

> H.264 and H.265 Encoding

> Analogue Embedding and De-Embedding

> Drag and Drop Matrix Switching

> Control: TCP/IP, RS232, Web GUI (API’s available)

> PoE (power over Ethernet)

1080P
Documents
H.265
HDMI 1.3
HDCP 1.4
TCP/IP
RS232
PoE
1G LAN

Specifications


Transmitter Connectivity

HDMI Input: 1 x HDMI Type A, 19-Pin Female

Ethernet: 1 x RJ45 Socket

L/R Analogue Audio: 3 Pin Phoenix Terminal

RS232: 1 x 3 Pin Phoenix Terminal

Power: 1 x DC Jack Socket


Receiver Connectivity

HDMI Output: 1 x HDMI Type A, 19-Pin Female

Ethernet: 1 x RJ45 Socket

L/R Analogue Audio: 3 Pin Phoenix Terminal

RS232: 1 x 3 Pin Phoenix Terminal

Power: 1 x DC Jack Socket


Signal

HDMI Signal: HDMI

Standards: HDMI 1.3, HDCP 1.4

Video Bandwidth: 4.95Gbps

Video Resolutions: 1080p/60Hz, 4:4:4

Colour Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit

HDMI Audio: LPCM 2CH, 48KHz, 44.1KHz, 32KHz

Analogue Audio: 2CH Stereo

IP Control: Ethernet 10/100

RS232: Full Duplex



Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: Transmitter 12V/1A, Receiver 12V/1A

Consumption: 2.88 Watts (max each unit)


PoE: 802.3af (transmitter and receiver)


Environment

Operating Temperature: 0° to 40°C

Operating Humidity: 20 to 90% RH (no condensation)

Transmitter Dimensions: (W) 120 x (D) 95 x (H) 22

Receiver Dimension: (W) 120 x (D) 95 x (H) 22

Weight: Transmitter 74g, Receiver 74g

Colour: Black


Safety and Emissions: CE, FCC, RoHS

Transmitter Contents


1 x Main Unit (SC08.MX5300C-TX)

2 x 3- Pin Phoenix Terminal Plug

2 x Mounting Brackets

1 x 12V/1A Mains Adaptor (used without PoE)

1 x Manual

Receiver Contents


1 x Main Unit (SC08.MX5300C-RX)

2 x 3- Pin Phoenix Terminal Plug

2 x Mounting Brackets

1 x 12V/1A Mains Adaptor (used without PoE)

1 x Manual
