Specifications

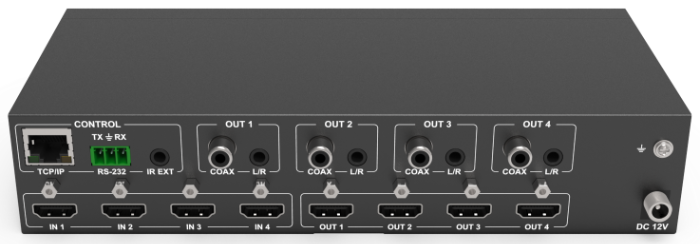

Input Connectivity

Signal: 4 x HDMI Type A, 19-Pin Female

Power: DC Jack Socket

Output Connectivity

Signal: 4 x HDMI Type A, 19-Pin Female

Digital Audio: 4 x RCA Socket (Coax)

Analogue Audio: 3.5mm stereo Jack Socket

Signal Connectivity

RS232: 3-Pin Phoenix Terminal

Ethernet: RJ45 Data Socket

IR: 3.5mm Jack Socket (IR Extender Cable)

Signal

Signal Input: HDMI

Standards: HDMI 2.0b, HDCP 1.X / 2.2

Bandwidth: 18Gbps

Video Resolutions: 4K@50/60Hz (YCbCr 4:4:4), 4K@30Hz.

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit, 10-bit, 12-bit (1080p/60Hz), 8-Bit (4K/60Hz YUV 4:4:4), 8-bit, 10-bit, 12-bit (4K/60Hz YCbCr 4:2:2 / 4:2:0)

Audio: PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 12V/2.5A DC

Consumption: 10 Watts

Environment

Operating Temperature: -0° to 40°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 220 x (D) 105 x (H) 44

Weight: 792g

Colour: Black

Cable Connection Lengths

HDMI Input: 3m@4K/60, 10m@4K/30, 15m@1080p/60

The use of “Premium High Speed HDMI” Cables is recommend

Contents

1 x Main Unit (SC04.MX44+)

1 x IR Remote Control

1 x Mains Adaptors 12V/2.5A

2 x Mounting Ears

1 x Manual

Description

The SC04.MX44+ switches any 4 HDMI inputs to any 4 HDMI outputs at resolutions up to 4K@60Hz. This professional matrix switch offers infra-red,front panel, RS232 and Ethernet TCP/IP control, making it perfect for any scenario where you are sharing 4 sources with 4 displays.

The front panel LED's make it easy to see which input is currently active at any given time. With it’s 18Gbps bandwidth and HDMI 2.0b compliance, this matrix will ensure a clear high quality image on all screens. Individual outputs can be down scaled down from 4K to 1080p using the IR remote control.

This SC04.MX44+ is suited to any installation requiring Ultra HD switching including boardrooms, classrooms, general office, retail displays, home gaming, Sky Q etc

Code: SC04.MX44+

4x4 HDMI Matrix Switch,18G 4K/60Hz, HDR10

Features

> Switches 4 x HDMI sources to 4 x HDMI displays

> HDMI 2.0b, HDCP 2.2 / 1x

> 18Gbps Bandwidth

> Supports 4K/60Hz, RGB/YCbCr 4:4:4/YCbCr 4:2:2

> LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio

> Down Scaling 4K → 1080p

> Extracts analogue and digital audio

> ARC (audio return path)

> HDR10, HDR10+, Dolby Vision
