Specifications

Transmitter Connectivity

HDMI Input: 1 x HDMI Type A, 19-Pin Female

Signal Output: 1 x RJ45 Socket

Digital Audio: SPDIF Optical

Analogue Audio: 3.5mm Stereo Jack Socket

RS232: 1 x 3 Pin Phoenix Terminal

IR Output: 1 x 3.5mm Jack Socket

IR Input: 1 x 3.5mm Jack Socket

Service: 1 x Mini USB (firmware update only)

LAN: 1 x RJ45 Data Socket

Power: 1 x DC Jack

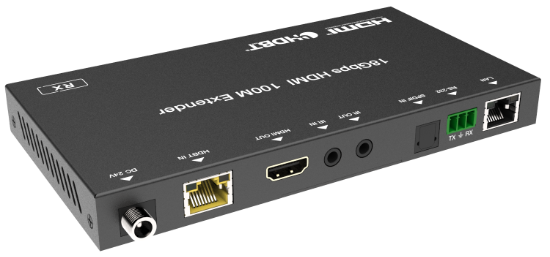

Receiver Connectivity

Signal Input: 1 x RJ45 Socket

HDMI Output: 1 x HDMI Type A, 19-Pin Female

Digital Audio: 1 x SPDIF Optical

RS232: 1 x 3 Pin Phoenix Terminal

IR Output: 1 x 3.5mm Jack Socket

IR Input: 1 x 3.5mm Jack Socket

Service: 1 x Mini USB (firmware update only)

LAN: 1 x RJ45 Data Socket

Power: 1 x DC Jack

Signals

HDMI Input: HDMI 2.0b / DVI 1.0

HDCP Compliance: HDCP 2.2 / HDCP 1x

Video Resolutions: Up to 4K 50/60Hz 4:4:4

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit, 10-bit, 12-bit, [1080p, 4K/30Hz, 4K/60Hz (YCbCr 4:2:0)], [8-bit 4K/60Hz (YCbCr 4:4:4)]

HDMI Audio Formats: PCM 2.0 / 5.1 / 7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS HD Master Audio, DSD

HDR Formats: HDR10, HDR10+, Dolby Vision

Distance: 70m/1080p and 40m/4K

Analogue Audio: PCM 2.0

Infra-Red: IR Frequency: 30KHz 50 56KHz (940nm)

RS232: Full Duplex

LAN: 1G pass-through

Power

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: Transmitter only 12V/1A

Consumption: 13 watt

Environment

Operating Temperature: -0° to 40°C

Storage Temperature: -20° to 60°C

Operating Humidity: 20 to 90% RH (no condensation)

Transmitter Dimensions: (W) 165 x (D) 88 x (H) 20

Receiver Dimension: (W) 165 x (D) 88 x (H) 20

Weight: Transmitter 170g and receiver 165g

Colour: Black

Safety and Emissions: CE, FCC, RoHS

Package Contents

1 x Transmitter

1 x Receiver

1 x IR Sender cable (1.5m)

1 x IR Receiver cable (1.5m)

2 x 3 Pin phoenix terminal

1 x Power supply 12V/1A

4 x Mounting Ears

1 x Manual

Description

This HDBaseT Extender extends high definition video, audio, bi-directional IR, RS-232 and LAN signals. The supported transmission distance is up to 90 meters for 4K@60Hz 4:4:4 resolution and 100 meters for 1080P/60Hz resolution between transmitter and receiver via a single CAT5e/6 cable.

The transmitter supports ARC (audio return channel) and local audio extraction. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports PoC (power over cable).

The extender includes two units, transmitter and receiver. The transmitter captures and transmits the input signals over one cost effective CAT5e/6 cable. The receiver receives the incoming signals and presents them as outputs for your devices.

This extender offers the most convenient solution for HDMI extension via a single CAT5e/6 with long distance capability, and is the perfect solution for any application.
